New Norco Fluid 1 FS 24 2023
New Norco Fluid 1 FS 24 2023

New Norco Fluid 1 FS 24 2023

Sale price$1,892.00Regular price $2,911.00

Norco Fluid 1 FS 24 (2023). The Fluid 1 FS 24 features progressive handling, low standover, youth-tuned suspension, and a dropper that’s optimized for 9–12-year-old riders under 90 pounds. It’s an aggressive trail bike that’s built to tackle real trails, with the same attention to quality and durability we expect from full-size bikes.

Key highlights

  • Built for young shredders: Youth-tuned suspension and cockpit for smaller riders
  • Confidence on real trails: Progressive handling and modern geometry for aggressive riding
  • Suspension: 145mm fork travel / 120mm rear travel
  • Ready out of the box: Dropper post and pedals included

Suspension and fit

  • Fork: Manitou Machete JUNIT Expert 24", 145mm, 42mm offset
  • Rear shock: RockShox Deluxe R, 170x35mm
  • Dropper: TranzX 100mm Kid’s Tune for confident descents
  • Standover: Low standover helps young riders move around the bike

Ride characteristics

  • Progressive handling and low standover built for confident trail riding
  • Suspension components designed specifically for young riders
  • Designed to fit small and perform big
  • Adult quality and durability, but built to fit

Fit, setup, and recommended upgrades

  • We want every rider to get the best performance from their new Fluid FS Youth.
  • Local pickup customers: We can help set suspension sag, rebound, and tire pressure so it feels right for your rider.
  • Shipped bikes: The bike arrives professionally assembled and test ridden. If you want help dialing in setup at home, we can walk you through the basics.
  • Good add-ons: Youth helmet, gloves, and knee pads are common first upgrades once the bike is sorted.

Fluid 1 FS 24 (2023) - Full specifications

Frame

Frame 6061 Alloy Frame, 120mm Travel, Tapered Head Tube, ISCG05 Mount

Suspension

Fork Manitou Machete JUNIT Expert 24", 145mm, 42mm offset
Rear shock RockShox Deluxe R, 170x35mm

Wheels and tires

Rims Stan's Crest MK4, 24", 32H
Front hub Bear Pawls, 15x110mm Boost, 32H, 6 Bolt
Rear hub Bear Pawls, 12x148mm Boost, 32H, HG, 6 Bolt
Front tire Maxxis Minion DHF EXO/TR 2.4"
Rear tire Maxxis Minion DHR II EXO/TR 2.3"
Spokes/Nipples Stainless, Black

Drivetrain

Rear shifter SRAM NX
Rear derailleur SRAM NX
Crankset Alloy Two Piece, 28T Narrow Wide, 140mm
Bottom bracket BSA Threaded
Cassette SRAM PG-1130, 11-42T, 11 Speed
Chain KMC X11

Brakes

Front brake SRAM G2 R, Organic Pads
Front rotor SRAM CenterLine, 180mm
Rear brake SRAM G2 R, Organic Pads
Rear rotor SRAM CenterLine, 160mm
Brake levers SRAM G2 R, Organic Pads

Cockpit

Handlebar SDG Slater, 640mm, 20mm Rise
Stem 6061 Alloy, 35mm Length, 31.8mm Clamp
Seatpost TranzX YSP18B, 31.6mm, 100mm, Kid's Tune
Headset Sealed Cartridge Bearing, Tapered
Saddle SDG Fly Jr.
Grips SDG Slater
Pedals SDG Slater

Sizing and fit

The Fluid 1 FS 24 is a one size youth trail bike built around 24" wheels. Based on Norco’s youth sizing chart, 24" bikes typically fit riders around 124–140 cm (about 4'1"–4'7").

  • If your rider is between sizes, focus on standover confidence and how easily they can move the bike underneath them.
  • This model is designed around 9–12-year-old riders under 90 pounds.
  • If you are unsure, contact us with your rider’s height and inseam for a quick check.

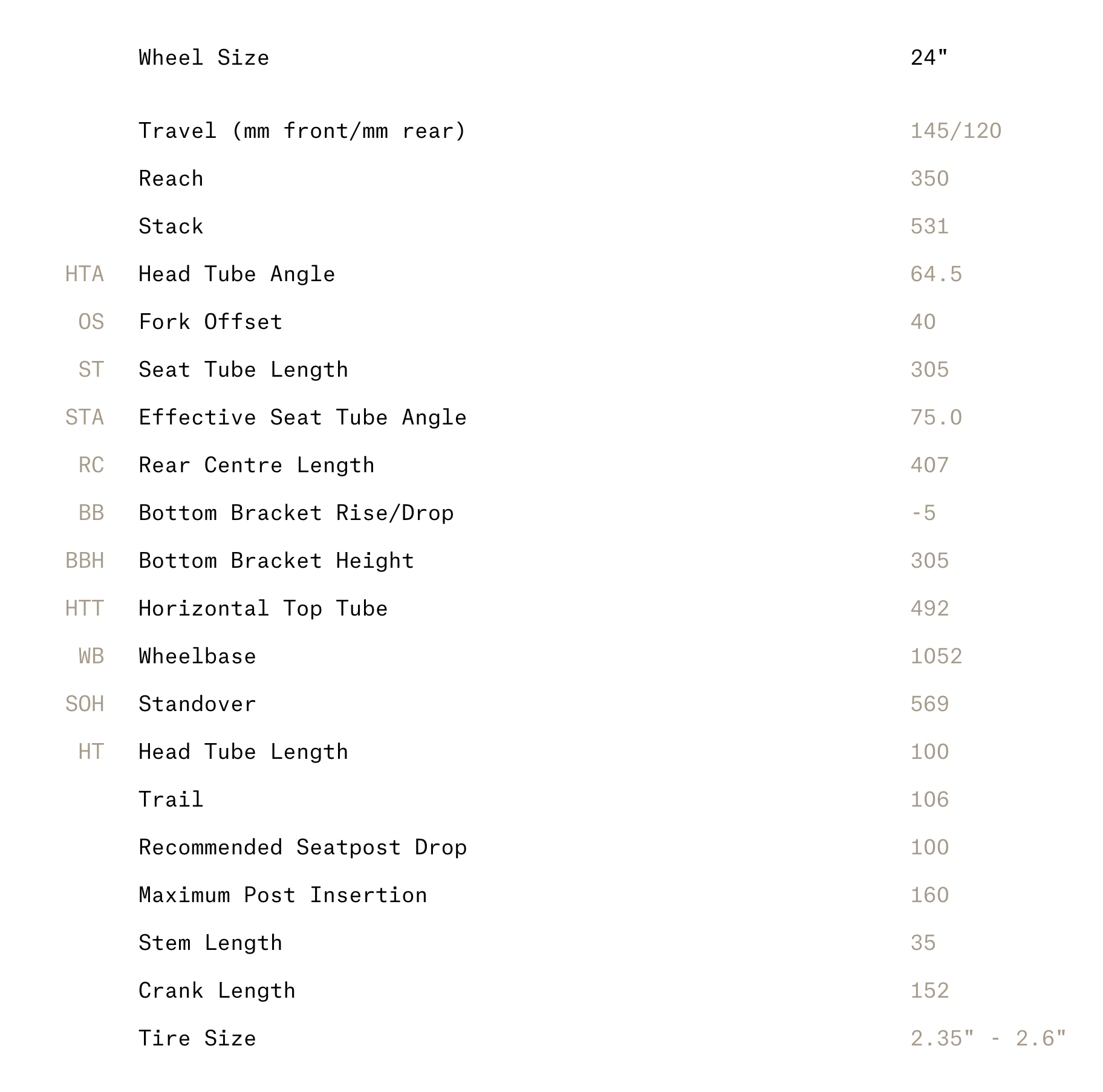

Frame geometry (mm and degrees) Tap to open chart

One size
Wheel size 24"
Travel (front/rear) 145 / 120
Reach 350
Stack 531
Head tube angle 64.5°
Fork offset 40
Seat tube length 305
Effective seat tube angle 75.0°
Rear centre 407
Bottom bracket rise/drop -5
Bottom bracket height 305
Horizontal top tube 492
Wheelbase 1052
Standover 569
Head tube length 100
Trail 106
Recommended seatpost drop 100
Maximum post insertion 160
Stem length 35
Crank length 152
Tire size 2.35" – 2.6"
